Flip Chip Technology: Revolutionizing Semiconductor Packaging

In the world of semiconductor manufacturing, few innovations have had as profound an impact as flip chip technology. This elegant packaging solution has become the backbone of modern electronics, enabling everything from smartphones to supercomputers. Let's explore the fascinating history of flip chip technology and its transformative applications across industries.

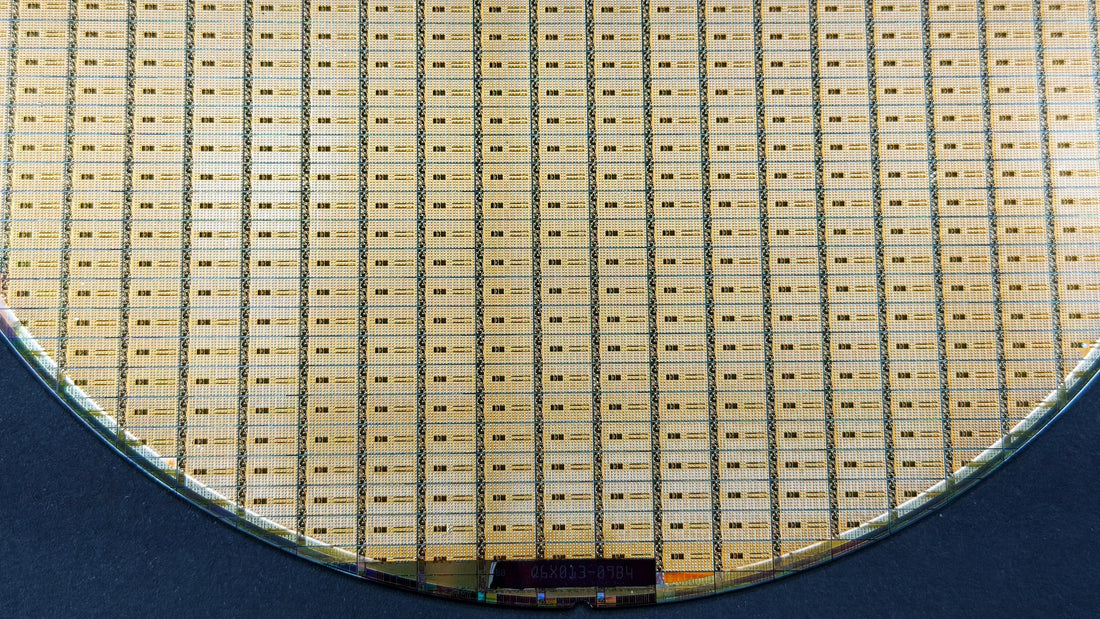

If you would like to own a real uncut flip chip wafer check one out here!

What is Flip Chip Technology?

Flip chip is an advanced method of interconnecting semiconductor devices to external circuitry. Unlike traditional wire bonding, where the chip sits face-up and tiny wires connect the chip pads to the package, flip chip technology literally flips the die upside down. The active side of the chip faces downward, with solder bumps connecting directly to the substrate or circuit board.

This seemingly simple inversion represents a revolutionary approach to chip packaging, offering superior electrical performance, thermal management, and miniaturization compared to conventional methods.

A Brief History

The IBM Revolution (1960s)

Flip chip technology was invented by IBM in the early 1960s as part of their Solid Logic Technology (SLT) program. IBM engineer C.W. Bates and his team developed this innovative interconnection method to overcome the limitations of wire bonding in their mainframe computers, particularly the IBM System/360 series launched in 1964.

The original implementation used controlled collapse chip connection, or C4 (pronounced "see-four"), which employed solder bumps to create direct electrical connections between the chip and the substrate. This breakthrough allowed for denser packaging, shorter signal paths, and improved electrical performance.

Evolution Through the Decades

Throughout the 1970s and 1980s, flip chip technology remained primarily within IBM's domain, used mainly in high-end mainframe computers and specialized applications where the higher manufacturing costs were justified by performance gains.

The 1990s marked a turning point as other semiconductor manufacturers began adopting and refining flip chip processes. Advances in materials science, particularly the development of underfill materials to strengthen the solder connections, made the technology more reliable and cost-effective.

By the early 2000s, flip chip had transitioned from a niche technology to a mainstream packaging solution, driven by the mobile revolution and the insatiable demand for smaller, faster, more power-efficient devices.

Key Advantages

Electrical Performance

The direct connection between chip and substrate eliminates the inductance and resistance associated with wire bonds, enabling:

• Higher operating frequencies
• Reduced signal delay
• Lower power consumption
• Better signal integrity

Thermal Management

With the active side of the chip facing down, heat can be dissipated more efficiently through the substrate. The use of thermal interface materials and heat spreaders further enhances cooling, making flip chip ideal for high-power applications.

Miniaturization

Flip chip technology enables significant size reduction by:

• Eliminating the space required for wire bonding
• Allowing connections across the entire chip surface rather than just the periphery
• Enabling thinner overall package profiles

Higher I/O Density

Traditional wire bonding limits connections to the chip's perimeter. Flip chip allows connections across the entire chip area, dramatically increasing the number of input/output connections possible—a critical advantage for modern high-performance processors.

Modern Applications

Mobile Devices

Virtually every smartphone and tablet relies on flip chip technology. Application processors, memory chips, and RF components use flip chip packaging to achieve the compact form factors consumers demand while delivering exceptional performance.

High-Performance Computing

Data center processors, graphics processing units (GPUs), and AI accelerators depend on flip chip technology to handle thousands of connections and dissipate the enormous heat generated by billions of transistors operating at high frequencies.

Automotive Electronics

The automotive industry's shift toward electric vehicles and autonomous driving has increased reliance on flip chip packaged semiconductors. Advanced driver assistance systems (ADAS), power management ICs, and sensor fusion processors all benefit from flip chip's reliability and performance.

5G Infrastructure

The rollout of 5G networks demands high-frequency components with exceptional signal integrity. Flip chip technology enables the RF and millimeter-wave ICs that power 5G base stations and devices.

AI and Machine Learning

Modern AI accelerators and neural processing units utilize flip chip packaging to interconnect high-bandwidth memory directly to processing cores, enabling the massive parallel computation required for machine learning workloads.

Consumer Electronics

Beyond smartphones, flip chip technology powers laptops, gaming consoles, smart TVs, wearables, and IoT devices. Its combination of performance, size, and cost-effectiveness makes it ideal for mass-market consumer products.

Manufacturing Process

The flip chip assembly process involves several critical steps:

1. Wafer Bumping: Solder bumps or copper pillars are deposited on the chip's bond pads
2. Wafer Dicing: The wafer is cut into individual dies
3. Flux Application: Flux is applied to facilitate solder reflow
4. Chip Placement: Dies are precisely positioned on the substrate
5. Reflow: Heat causes solder to melt and form electrical connections
6. Underfill: Epoxy material is dispensed to strengthen connections and improve reliability
7. Testing: Electrical testing verifies proper functionality

Challenges and Solutions

Despite its advantages, flip chip technology presents unique challenges:

• Thermal Expansion Mismatch: Different coefficients of thermal expansion between chip and substrate can stress solder joints. Underfill materials help mitigate this issue.
• Manufacturing Complexity: Flip chip requires precise equipment and process control, though automation has improved yields significantly.
• Testing and Rework: Once assembled, flip chip devices are difficult to inspect and repair, necessitating robust quality control during manufacturing.

The Future of Flip Chip

As semiconductor technology advances toward 3D integration and chiplet architectures, flip chip technology continues to evolve. Emerging trends include:

• Fine-Pitch Bumping: Smaller bump pitches enabling even higher I/O density
• Hybrid Bonding: Combining flip chip with through-silicon vias (TSVs) for 3D stacking
• Advanced Underfills: New materials for improved reliability in harsh environments
• Chiplet Integration: Using flip chip to interconnect multiple specialized dies in a single package

Conclusion

From its invention in IBM's laboratories six decades ago to its ubiquitous presence in modern electronics, flip chip technology has fundamentally transformed semiconductor packaging. Its unique combination of electrical performance, thermal management, and miniaturization capabilities has made it indispensable for today's most demanding applications.

As we move toward an era of heterogeneous integration, artificial intelligence, and ubiquitous computing, flip chip technology will continue to play a central role in enabling the next generation of electronic innovation. The simple act of flipping a chip upside down has proven to be one of the most consequential innovations in semiconductor history.
