How Silicon Wafers Are Made: From Sand to Semiconductor

Silicon wafers are made by purifying quartz sand into 99.9999999%-pure polysilicon, growing it into a single-crystal ingot via the Czochralski process, then slicing, lapping, etching, and polishing the ingot into mirror-flat discs ready for chip fabrication. The full process takes several weeks and spans multiple specialized facilities across the globe.

Silicon wafers are made by purifying quartz sand into electronic-grade polysilicon (99.9999999% pure), growing it into a single-crystal ingot using the Czochralski process, then slicing, lapping, etching, and polishing it into mirror-flat discs. The full process takes several weeks and requires controlled environments at every stage.

Step 1: Mining and Refining Silica Sand

The process starts with silica sand (SiO₂), which is abundant and inexpensive. The sand is processed in electric arc furnaces at temperatures above 2,000°C to separate oxygen from silicon, producing metallurgical-grade silicon at about 98–99% purity. This grade is used in steelmaking and solar panels, but semiconductors require far higher purity.

Step 2: Producing Electronic-Grade Polysilicon

Metallurgical-grade silicon is converted to trichlorosilane gas (HSiCl₃) by reacting it with hydrogen chloride. The gas is then distilled to remove metal impurities, then decomposed back into ultra-pure silicon using the Siemens process. The result is electronic-grade polysilicon at 99.9999999% purity — nine nines. At this level, there is less than one impurity atom per billion silicon atoms.

Step 3: Crystal Growth — The Czochralski Process

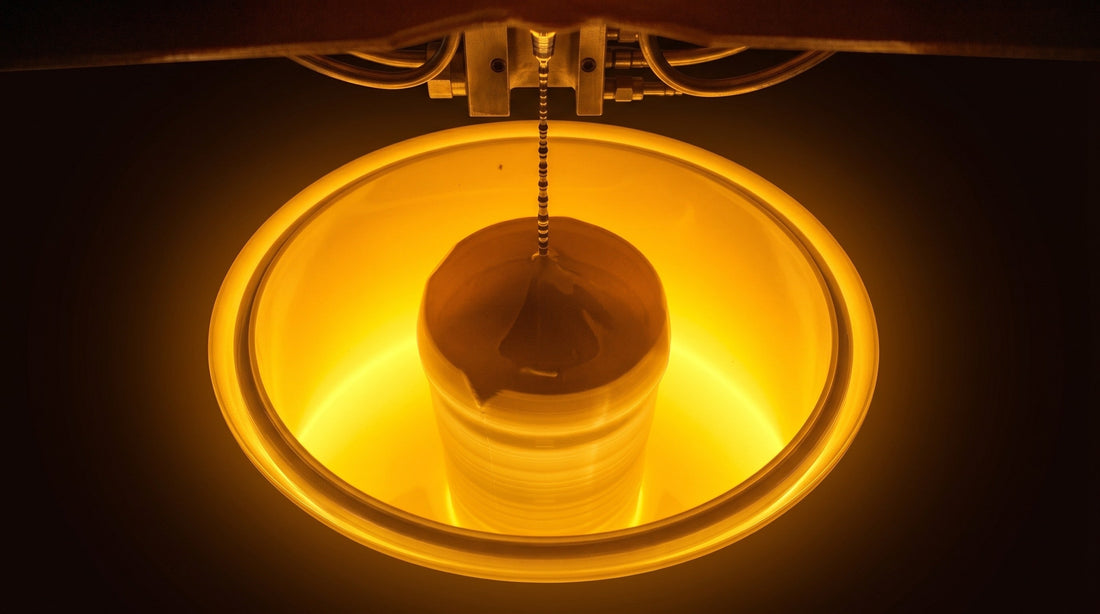

A quartz crucible is filled with polysilicon and heated to approximately 1,414°C (just above silicon's melting point). A small seed crystal is dipped into the melt and slowly pulled upward while rotating. As it rises, molten silicon solidifies onto the seed, extending the crystal. The result is a large cylindrical ingot of single-crystal silicon — up to 300 mm in diameter and several hundred kilograms in weight.

Step 4: Shaping and Slicing

The ingot is ground to a uniform diameter and a flat or notch is added to indicate crystal orientation. Diamond-tipped wire saws then slice the ingot into thin wafers. A 300 mm ingot yields wafers that are typically 775 micrometers thick. Wire sawing introduces surface damage that must be removed in subsequent steps.

Step 5: Lapping and Etching

Freshly sliced wafers are lapped (ground flat using abrasive slurry) to remove saw marks and achieve uniform thickness. Chemical etching then removes the damaged layer left by lapping. The wafers emerge chemically clean but still have microscopic surface roughness.

Step 6: Polishing

Chemical mechanical polishing (CMP) brings the wafer to its final mirror-flat finish. Wafers are pressed against polishing pads while a slurry of fine abrasive particles and reactive chemicals removes material at the atomic level. The finished surface has a roughness of less than 0.1 nanometer RMS — among the flattest surfaces manufactured at scale anywhere in the world.

Step 7: Cleaning and Inspection

Finished wafers undergo rigorous cleaning using RCA clean processes (a sequence of chemical baths developed at RCA Laboratories in the 1960s) to remove organic residues, metals, and particles. Each wafer is then inspected using laser-based surface scanners. Wafers exceeding defect limits are rejected.

From Wafer to Chip

The polished blank wafer is now ready for IC fabrication. It enters a semiconductor fab where hundreds of process steps — photolithography, ion implantation, deposition, etching, and more — build up the transistors, interconnects, and circuits that make up a finished integrated circuit.
