Lead frames have played a central role in the semiconductor industry since the early days of integrated circuits. They are the metal structures that provide mechanical support, electrical connection, and heat dissipation for semiconductor devices packaged in plastic or ceramic housings. Their history reflects the broader evolution of chip packaging, moving from simple connections in the 1950s and 1960s to highly engineered solutions that support today’s advanced devices.

In the 1960s, when integrated circuits were first introduced, packaging was still primitive. Chips were mounted in metal cans or ceramic packages, which were expensive and limited in scale. As production volumes grew, the industry needed a cost-effective way to connect chips to external circuits while protecting the die. The lead frame emerged as the answer. It is made by stamping or etching thin sheets of conductive metal, typically copper or iron-nickel alloys, into a frame with leads that radiate outward. The semiconductor die is attached to the central pad of the frame, then tiny gold or aluminum wires connect the die’s bond pads to the leads. Finally, the assembly is encapsulated in plastic, forming the familiar dual in-line packages (DIPs) that dominated electronics through the 1970s and 1980s.

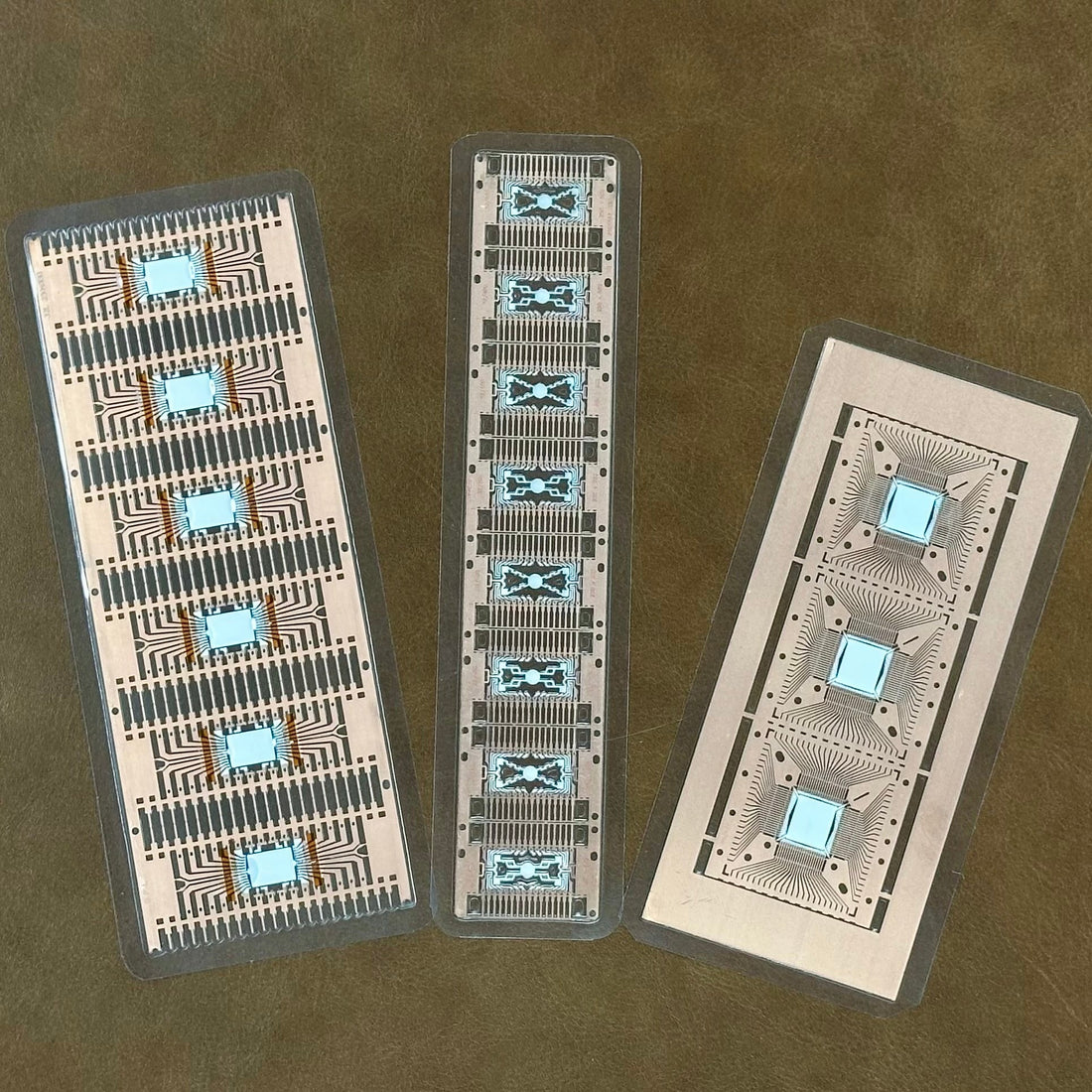

A lead frame made of copper and silver upcycled into a bookmark

As demand for smaller and faster devices increased, lead frames evolved. The introduction of surface-mount technology in the 1980s brought packages such as small-outline integrated circuits (SOICs) and quad flat packages (QFPs), both of which relied on redesigned lead frames with finer pitch and improved planarity. These innovations allowed chips to be placed directly on printed circuit boards without through-holes, reducing size and improving performance. Lead frames were adapted to support these tighter geometries through precision stamping, etching, and plating processes that delivered thin, reliable leads capable of handling high pin counts.

In the 1990s and 2000s, the industry faced new challenges as chips became more complex and power-dense. Lead frames had to dissipate greater amounts of heat while maintaining low electrical resistance. To address this, manufacturers introduced copper lead frames with plated surfaces, often coated in silver or palladium to improve conductivity and solderability. Specialized designs like exposed-pad packages allowed direct thermal contact between the die and the circuit board, a feature that became essential in power electronics and automotive applications.



Although newer packaging technologies such as flip-chip, wafer-level packaging, and fan-out have gained prominence in recent years, lead frames remain widely used because of their cost efficiency, scalability, and reliability. They continue to serve as the backbone for billions of semiconductor packages annually, especially in consumer electronics, automotive systems, and industrial devices. Even today, companies refine the design and plating of lead frames to support higher frequencies, better thermal performance, and environmentally friendly manufacturing.

The use of lead frames demonstrates how a seemingly simple metal structure has underpinned the growth of modern electronics. From the earliest dual in-line packages to today’s advanced surface-mount designs, lead frames have provided the foundation that allowed semiconductors to become reliable, mass-produced, and integrated into every aspect of technology. Their continued use reflects both their proven utility and their ability to adapt to the evolving needs of the industry.

Silicon Masters has upcycled lead frame book marks which make great gifts.
