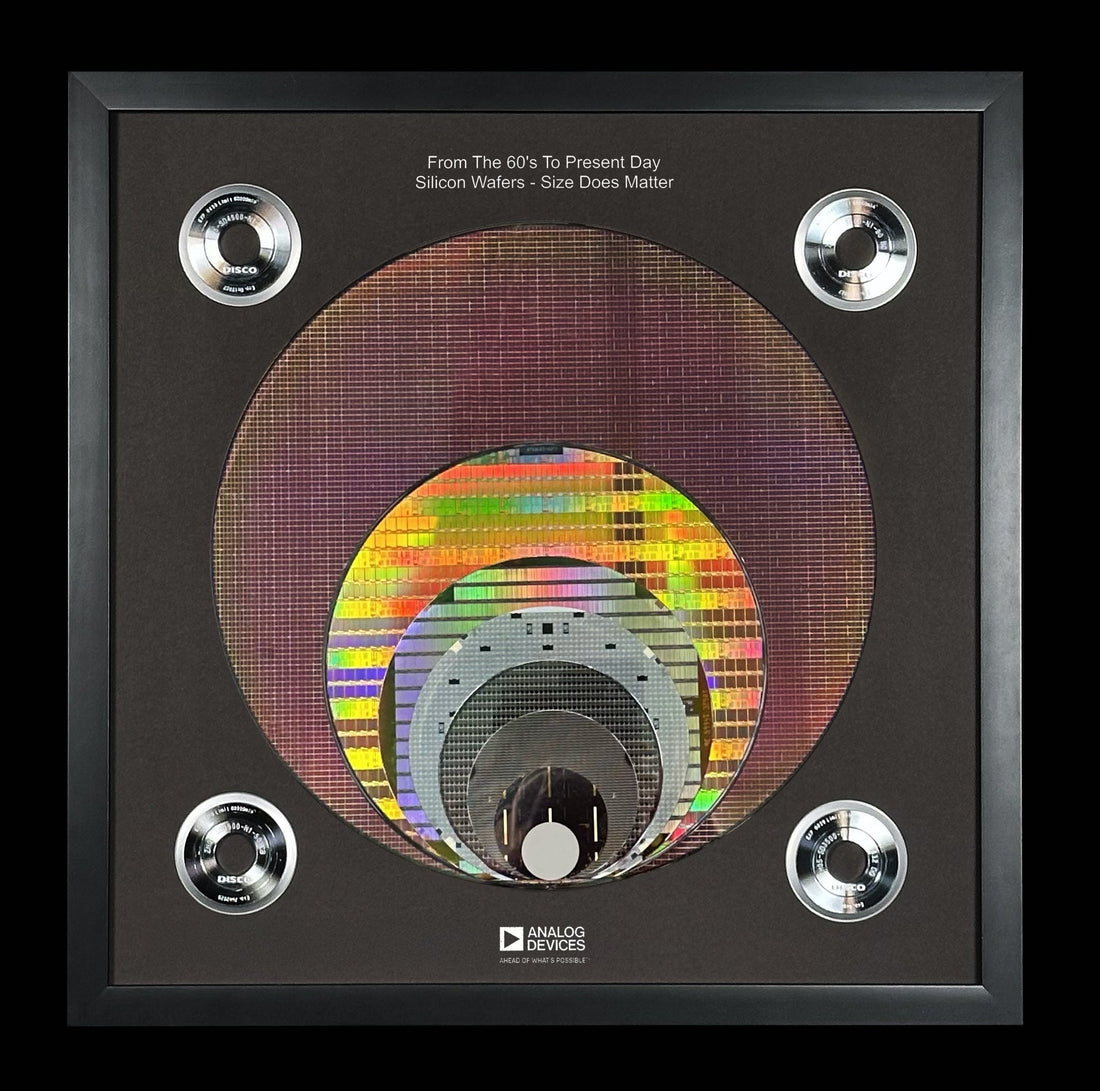

The Evolution of Silicon Wafers: From 25mm to 300mm
Silicon wafers have grown from 25mm (1 inch) in diameter in the 1960s to 300mm (12 inches) today. Each size increase allowed fabs to produce more chips per wafer, driving down cost per die and enabling the economics of modern semiconductor manufacturing.
Silicon wafers are the physical foundation of every computer chip, smartphone processor, and memory module made today. Over the past six decades, the semiconductor industry has systematically increased wafer diameter from roughly one inch to 300 millimeters (about 12 inches). Each size jump delivered more chips per wafer, lower cost per die, and higher manufacturing efficiency — but required enormous capital investment and years of industry-wide coordination.
The 1960s: Starting Small (25–38 mm)
Early silicon wafers in the 1960s were tiny by today's standards — typically 25 to 38 mm in diameter. The technology was new, crystal growth was imprecise, and the tools for handling larger substrates didn't exist yet. Semiconductor companies like Texas Instruments, Fairchild, and Intel worked with what they had: small, hand-polished wafers processed in facilities that were primitive compared to modern fabs.
Despite their small size, these early wafers enabled the birth of the integrated circuit industry. Gordon Moore's observation in 1965 — that transistor counts doubled roughly every two years — would drive the demand for larger wafers and denser patterning for decades.
The 1970s: Moving to 75–100 mm
As demand for chips grew, manufacturers moved to 75 mm (3-inch) and then 100 mm (4-inch) wafers through the 1970s. Larger wafers meant more dies per run, which reduced the cost per chip. Processing equipment had to scale accordingly: ion implanters, photolithography systems, and furnace tubes all needed redesigning to handle the increased diameter.
This period also saw the rise of dedicated semiconductor equipment manufacturers — companies like Applied Materials and Lam Research — whose growth was tied directly to the transition to larger wafer sizes.
The 1980s: 150 mm Becomes Standard
By the mid-1980s, 150 mm (6-inch) wafers became the dominant production standard. This size offered a substantial improvement in die count per wafer over 100 mm, and the equipment ecosystem — steppers, CVD tools, etch systems — had matured enough to support high-volume manufacturing at this diameter.
This was also the period when cleanroom design became critical. As wafer sizes grew, even a single particle could ruin an entire die. The semiconductor industry invested heavily in air filtration, gowning protocols, and contamination control.
The 1990s: The 200 mm Era Begins
The 200 mm (8-inch) transition defined the 1990s. With roughly 1.78 times the area of a 150 mm wafer, the jump to 200 mm significantly reduced cost per die and enabled the mass production of microprocessors, memory chips, and logic devices that powered the PC revolution.
DRAM manufacturers, in particular, pushed hard for 200 mm because memory chips are highly area-sensitive — more wafer area means more chips per run. By 2000, 200 mm had become the global standard for high-volume production.
The 2000s and Beyond: 300 mm Takes Over
The move to 300 mm (12-inch) wafers began in the early 2000s and represented the largest single-step increase in wafer area in the industry's history — roughly 2.25 times the area of a 200 mm wafer. The transition required entirely new fabs, new handling systems (automated material handling systems, or AMHS), and new process equipment. The investment per fab crossed $1 billion for the first time.
Intel, Samsung, TSMC, and other leading manufacturers spent the first decade of the 2000s converting to 300 mm. Today, all leading-edge semiconductor manufacturing — chips at 7 nm, 5 nm, 3 nm, and below — occurs on 300 mm wafers.
Why Hasn't the Industry Moved to 450 mm?
The semiconductor industry has discussed a transition to 450 mm wafers for over two decades. The economics are compelling: a 450 mm wafer has roughly 2.25 times the area of a 300 mm wafer, which would again dramatically reduce cost per die.
But the transition has stalled. The equipment investment required — new lithography systems, handlers, furnaces, and process tools — is estimated in the hundreds of billions of dollars industry-wide. ASML, Applied Materials, and other equipment makers have been reluctant to invest at scale without firm commitments from chipmakers. And chipmakers have been reluctant to commit without equipment available. The industry remains on 300 mm for the foreseeable future.
Silicon Wafers as Objects of Beauty
The same wafers that enabled the digital age have an unexpected aesthetic dimension. The thin oxide and nitride layers deposited during processing create vivid iridescent colors through thin-film interference — the same physics that makes soap bubbles rainbow-colored. Silicon Masters turns authentic wafers into framed art and jewelry, preserving these remarkable objects outside the chip manufacturing pipeline.
