Why Silicon Wafers Are So Colorful: The Physics of Thin-Film Interference

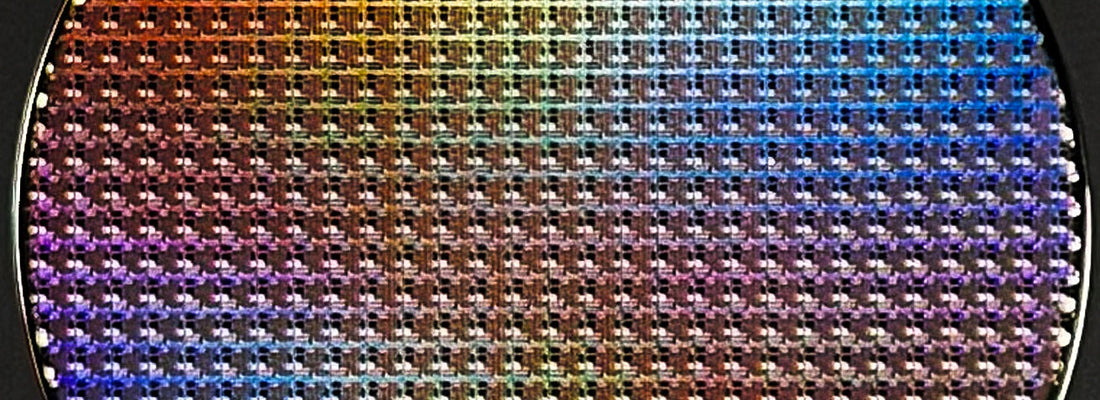

Silicon wafers appear rainbow-colored because of thin-film interference: light reflects off both the top and bottom surfaces of a nanometer-thin oxide or nitride layer, and the two reflected waves reinforce or cancel specific wavelengths depending on film thickness. The color you see tells engineers exactly how thick the film is — no additional measurement required.
Silicon wafers appear rainbow-colored because of thin-film interference. When light passes through microscopic oxide or nitride layers on the wafer's surface and reflects off the silicon below, the two reflected waves interact, reinforcing or canceling specific wavelengths. The color you see directly corresponds to the thickness of the film on top of the wafer.
What Is Thin-Film Interference?
Thin-film interference occurs when light hits a thin transparent layer sitting on top of a reflective surface. Some light reflects immediately off the top surface of the film. The rest passes through, reflects off the bottom interface, and exits back through the film. Because the second ray travels a longer path, it arrives slightly out of phase with the first. Depending on the film thickness and the wavelength of light, the two reflected rays either reinforce each other (constructive interference, producing a bright color) or cancel each other (destructive interference, suppressing that wavelength).
Why Silicon Wafers Show Strong Colors
Silicon is an excellent mirror for infrared light but strongly absorbs visible wavelengths, which means very little light scatters from beneath the bulk silicon. The colors you see come almost entirely from the interference effects at the thin film on top. This makes the color signal cleaner and more vivid than it would be on a less absorbing substrate.
What the Colors Mean
Each color corresponds to a specific film thickness range. This relationship, known as the color chart or oxide color chart, is a standard reference tool used in semiconductor fabs worldwide. Engineers use the visible color to make fast, non-destructive estimates of oxide or nitride thickness during wafer processing.
| Film Thickness (nm) | Approximate Color |
|---|---|
| 0–10 | Tan / brown |
| 10–30 | Brown / blue-violet |
| 30–70 | Blue / blue-green |
| 70–100 | Green / yellow-green |
| 100–150 | Yellow / orange |
| 150–200 | Red / violet |
| 200–280 | Blue / blue-green again |
The cycle repeats as thickness increases, because a film that is twice as thick produces the same phase relationship as the original. This periodic repetition is one of the most useful features of thin-film color charts for process control.
Why Bare Silicon Looks Gray
A bare silicon wafer with no film at all reflects light nearly uniformly across visible wavelengths, producing a metallic silver-gray appearance. The rainbow colors only appear once a thin film — thermal oxide, nitride, or a deposited layer — has been grown or deposited on the surface.
Practical Uses in Semiconductor Manufacturing
Fab technicians use color charts routinely to verify that oxidation or deposition processes ran correctly. A wafer that should show yellow-orange but instead appears blue tells the engineer immediately that the oxide thickness is off. This visual check complements more precise measurements from ellipsometers and reflectometers, and it remains in use because it is instantaneous and requires no equipment.
